Product Details:
Payment & Shipping Terms:
|
| SALVAGE: | Scrap Retains A Consistently High Level Of Value | UNIT VOLUME: | Greater Amount Of Finished Magnesium Material Obtained, Pound For Pound |
|---|---|---|---|
| NONMAGNETIC: | Good For Electrical And Computer Applications | REPID HEAT: | Ideal For A Broad Range Of Operating Temperatures, From 350 Degrees Fahrenheit To -30 Degrees Fahrenheit |
| NON-GALLING: | Sound And Rugged Surface, Offering A Low Coefficient Of Friction And Minimum Wear | STRENGTH: | Excellent Strength And Stiffness Per Unit Weight |
| CORROSION RESISTANT: | A Wide Variety Of Chemical Treatments Exists For Corrosion Protection, Alteration Of Surface Appearance, And To Provide A Base For Painting. Basic Engineering Precautions Averts Galvanic Corrosion | ALKALI-RESISTANT: | Makes For Easy Cleaning |
| WELDING: | Strong Weldments Up To 95% Of Parent Metal, With Minimal Porosity | STABILITY: | No Stress Relief After Machining; No Warps And Is Dent Resistant |
| WEIGHT: | Easier Handling Saves Energy And Time | DAMPING: | Absorbs Vibration For Longer Life, While Retaining Dimensional Stability |
| Application:: | As The Master Alloy, Magnesium-rare Earth Alloy Can Be Used As The Addictive To Alloys, For The Refining, Hardening And Machinability. | TOOLING: | 4 To 5 Times Greater Tool Life |
| FINISH: | Up To 5 Times More Machinable Than Rolled Aluminum | COSTS: | Machine Dry, Without Oil Or Chemicals |
Magnesium alloys are the lightest metal structure material for engineering applications. In the past years, engineers have taken a great interest in magnesium alloys in the automotive, aerospace, weapons, electronic and other fields, because of their low density, high specific strength and stiffness, good damping characteristics, as well as an excellent durability. Especially in the field of automobile industry, magnesium alloys have replaced the steel, cast iron and even aluminum alloys (Magnesium is the lightest of all structural metals, aluminum being 1.5 times heavier and steel being up to four times heavier), because they can reduce the weight of vehicles, so that significantly contributes to fuel economy and reducing CO2 emissions.
XIAN YUECHEN METAL PRODUCTS CO., LTD. (XYMCO) can mass produce LZ91,LA91, LA141, MA18 and MA21 magnesium lithium alloys in the form of rectangular or round shape ingot by vacuum melting techniques, and mass produce MgLi wrought alloys and its products of magnesium lithium alloy slab, magnesium lithium alloy bock, magnesium lithium alloy plate, magnesium lithium alloy sheet, magnesium lithium alloy foil, magnesium lithium alloy strip, magnesium lithium alloy coil, magnesium lithium alloy billet, magnesium lithium alloy rod, magnesium lithium alloy bar, magnesium lithium alloy tube, magnesium lithium alloy pipe, magnesium lithium alloy wire, magnesium lithium alloy profile by casting, forging, extrusion and hot rolling process. XYMCO also produces the customized sizes (non standard sizes) magnesium lithium alloy materials and its products according to customers’ requirements.
Magnesium Lithium alloys Chemical Composition (%)
| Grade | Li | Al | Zn | Si | Cd | Ce | Mg |
| LZ91 | 8.0-10.0 | - | 0.8-1.5 | - | - | - | Balance |
| MA21 | 7.0-9.0 | 4.0-6.0 | 0.8-2.0 | 0.1-0.4 | 3.0-5.0 | 0.15 | Balance |
| MA18 | 10.0-11.5 | 0.5-1.0 | 0.8-2.0 | 0.1-0.4 | - | 0.15-0.35 | Balance |
| LA141 | 13.-15.0 | 0.8-1.5 | - | - | - | - | Balance |
| LA91 | 8.0-10.0 | 0.8-1.5 | - | - | - | - | Balance |
Magnesium – Lithium Alloy Mechanical Properties
|
Grade
|
Density (g/cm3) |
Hardness (HB) |
Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
Working Temperature |
| LZ91 | 1.48 | 45-75 | 160-180 | 110-130 | 15-35 | Max. 100℃ |
| MA21 | 1.6 | 50-80 | 200-280 | 130-250 | 6-25 | Max. 120℃ |
| MA18 | 1.48 | 45-65 | 150-220 | 100-180 | 15-40 | Max. 80℃ |
| LA141 | 1.35 | 40-70 | 110-140 | 100-120 | 10-40 | Max. 80℃ |
| LA91 | 1.45 | 45-75 | 140-180 | 110-130 | 10-40 | Max. 100℃ |

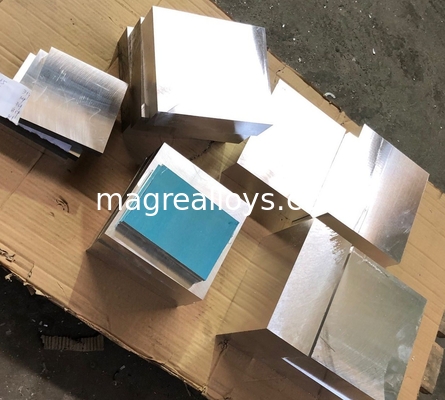

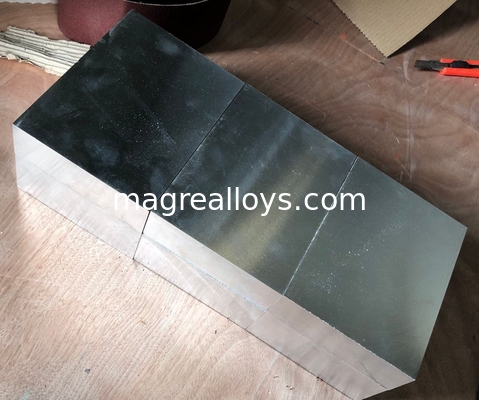

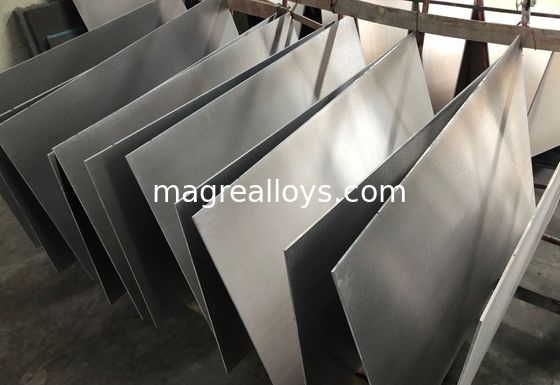

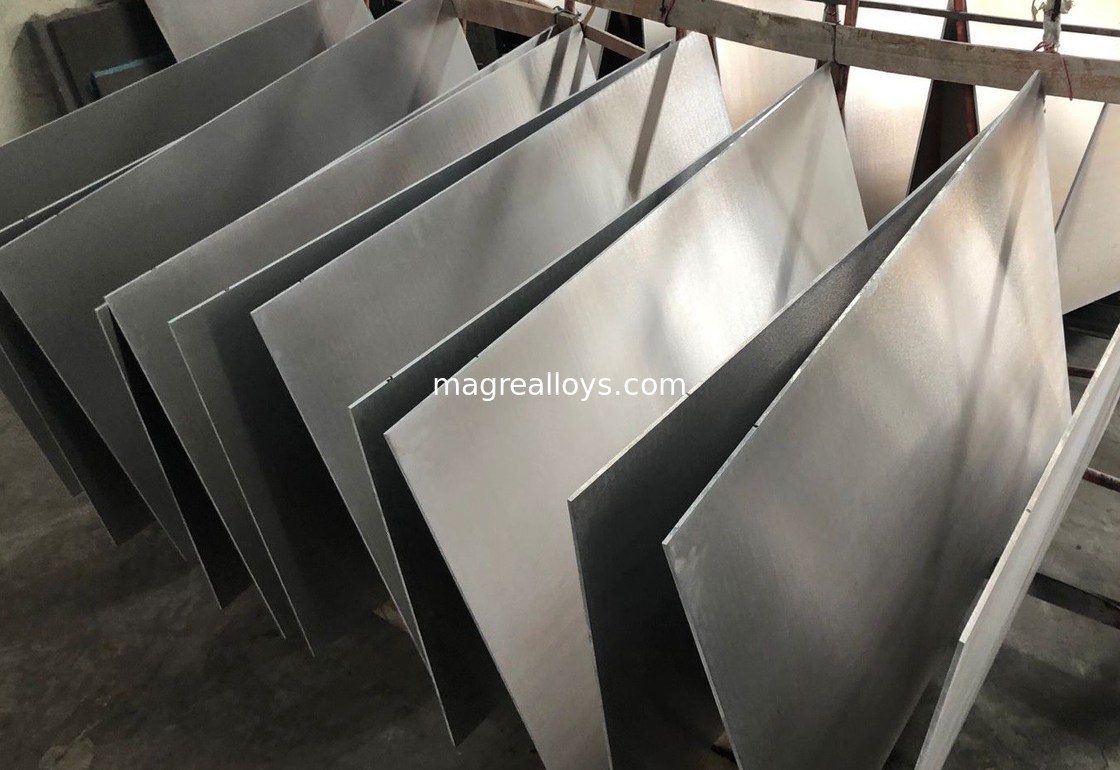

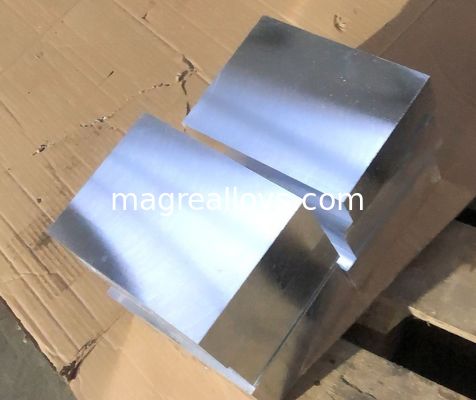

The sizes range of XYMCO’s Magnesium Lithium Alloy materials
|
Material grade & Size range |
ASTM standard grade | Russia Standard | |||
| LZ91 | LZ91 | LA141 | MA21 | MA18 | |
| Cast billet, plate |
Dia. 240x550mm, Dia. 90x300mm, Dia. 320x2000mm, 180x800x2000mm and other customized sizes |
||||
| Extruded sheet, plate | 14x330mm, 5x220mm, 10x300mm and other customized sizes | ||||
| Extruded rod, bar, billet | Dia. 60mm, Dia. 30mm, Dia 100mm and other customized sizes | ||||
| Forged slab, plate |
55x400x600mm, 80x400x500mm, 110x350x400mm and other customized sizes |
||||
| Forged billet, rod, bar | Dia. 30-Dia. 150mm | ||||
| Hot rolled plate and foil |
Plate: Thickness 0.5-45mm x Max. width 600mm; Foil: Thickness 0.05-0.5mm x Max. 80mm |
||||
What's Magnesium lithium (MgLi) alloys and Aluminium Lithium alloys
Magnesium lithium (MgLi) alloys are among the lightest structural materials. Aluminium lithium alloys are a range of advanced aluminium alloys. Their key advantage over standard aluminium alloys is a lower density combined with improved elastic modulus. Resistance to fatigue cracking is also generally superior to standard 2000 and 7000 series aluminium alloys. Newer aluminium lithium alloys have improved corrosion resistance and greater toughness than their predecessors.
Applications of ultra light Magnesium Lithium (MgLi) alloy
Aerospace: Dashboard, levers, skin, seat frames, aircraft down side, fuel tank, and anti-cosmic dust shield wall, gyro mount plate, etc;
Military field: Missile fin and shell, rocket head case, the conversion device holder, aiming devices, stretchers, cartridges, etc;
Transportation: Wheels, steering wheel locking device covers, small toolbox door, pedal bracket, door frames, tail plate, motor cover, front cover, air compressor cover, pumping tubing, cars, etc;
3C products: Laptop case, cell phone case, camera case, PDA / GPS shell, high-end audio vibration film / tone pots, ultra-precise frequency electronic lithium-magnesium alloy plate, conduit, etc.
