WE54 magnesium alloy ingot WE54A master alloy ingot for Elevated temperature usage

China WE54 magnesium alloy ingot WE54A master alloy ingot for Elevated temperature usage supplier
WE54 magnesium alloy ingot WE54A master alloy ingot for Elevated temperature usage supplier WE54 magnesium alloy ingot WE54A master alloy ingot for Elevated temperature usage supplier WE54 magnesium alloy ingot WE54A master alloy ingot for Elevated temperature usage supplier WE54 magnesium alloy ingot WE54A master alloy ingot for Elevated temperature usage supplier WE54 magnesium alloy ingot WE54A master alloy ingot for Elevated temperature usage supplier

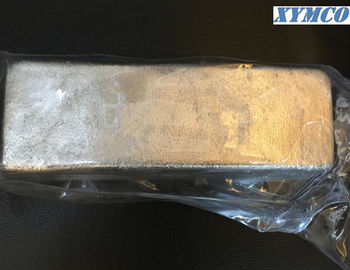

Large Image :  WE54 magnesium alloy ingot WE54A master alloy ingot for Elevated temperature usage

Product Details:

Place of Origin: Xi'an, Shaanxi, China
Brand Name: XYMCO
Certification: SGS, BV, UL
Model Number: WE54 magnesium alloy ingot WE54A master alloy ingot for Elevated temperature usage

Payment & Shipping Terms:

Minimum Order Quantity: 1KG
Price: 5-50USD/KG EX-WORKS
Packaging Details: PLYWOOD CASE
Delivery Time: 7DAYS
Payment Terms: T/T, WESTERN UNION, L/C, D/P, D/A
Supply Ability: 200tonne per month
Contact Now
Detailed Product Description
SALVAGE: Scrap Retains A Consistently High Level Of Value UNIT VOLUME: Greater Amount Of Finished Magnesium Material Obtained, Pound For Pound
NONMAGNETIC: Good For Electrical And Computer Applications REPID HEAT: Ideal For A Broad Range Of Operating Temperatures, From 350 Degrees Fahrenheit To -30 Degrees Fahrenheit
NON-GALLING: Sound And Rugged Surface, Offering A Low Coefficient Of Friction And Minimum Wear STRENGTH: Excellent Strength And Stiffness Per Unit Weight
CORROSION RESISTANT: A Wide Variety Of Chemical Treatments Exists For Corrosion Protection, Alteration Of Surface Appearance, And To Provide A Base For Painting. Basic Engineering Precautions Averts Galvanic Corrosion ALKALI-RESISTANT: Makes For Easy Cleaning
WELDING: Strong Weldments Up To 95% Of Parent Metal, With Minimal Porosity STABILITY: No Stress Relief After Machining; No Warps And Is Dent Resistant
WEIGHT: Easier Handling Saves Energy And Time DAMPING: Absorbs Vibration For Longer Life, While Retaining Dimensional Stability
Application:: As The Master Alloy, Magnesium-rare Earth Alloy Can Be Used As The Addictive To Alloys, For The Refining, Hardening And Machinability. TOOLING: 4 To 5 Times Greater Tool Life
FINISH: Up To 5 Times More Machinable Than Rolled Aluminum COSTS: Machine Dry, Without Oil Or Chemicals

WE54 is a high strength fully heat treatable magnesium based casting alloy for use at temperatures up to 300°C. The alloy develops high strength properties at elevated temperatures, without containing either silver or thorium.



The excellent retention of properties at elevated temperatures and improved corrosion resistance will be of interest to designers of power systems, transmissions, missiles, high performance cars and other high technology applications. Prolonged use of this alloy (ie in excess of 1000 hours) at temperatures in the range 100°C–250°C may result in the loss of ductility. An alternative alloy is WE43.



ASTM B 93/B 93M – 07

ASTM B80-01



Yttrium 4.75–5.5%

Heavy rare earths* 1.0–2.0%

Neodymium 1.5–2.0%

Zirconium 0.4% min

Magnesium Balance

*Heavy rare earth fraction contains mainly Yb, Er, Dy, and Gd



The alloy develops its properties in the fully heat treated (T6) condition ie: 8 hours at 525°C, Hot water or polymer quench or air cool, Age for 16 hours at 250°C, Air cool.



Specific gravity 1.85

Coefficient of thermal expansion 27.0 x 10 -6 K -1

Thermal conductivity 52 Wm -1 K -1

Specific heat 960 Jkg -1 K -1

Electrical resistivity 173 nΩm

Modulus of elasticity 44.1 GPa

Poissons ratio 0.3

Melting range 545–640°C

Damping index 0.17

Brinell hardness 85



Minimum specification tensile properties ISO 16220

0.2% Proof stress 170 MPa

Tensile strength 250 MPa

Elongation 2%





Fine grained and pressure tight with good casting characteristics.






Weldable by the tungsten arc inert gas process (TIG) with a filler rod of the parent alloy composition. Castings should be heat treated after welding: 1 hour at 510°C, quenched or air cooled and 16 hours at 250°C.



WE54 castings, like all magnesium alloys, machine faster than any other metal. Providing the geometry of the part allows, the limiting factor is the power and speed of the machine rather than the quality of the tool material. The power required per cubic centimetre of metal removed varies from 9 to 14 watts per minute depending on the operation.



Additions of yttrium contribute to the excellent corrosion resistance characteristics of WE54 to the extent that it is of a similar order to aluminium casting alloys under salt spray conditions.

Corrosion rate mg/cm 2 /day

Intermittent salt spray 0.023

ASTM B117 salt fog 0.1–0.2

Sea water immersion 0.1




0.2% Proof stress 205 MPa

Tensile strength 280 MPa

Elongation 4%



0.2% Proof stress 165–175 MPa

Ultimate strength 410 MPa

WE54 magnesium alloy ingot WE54A master alloy ingot for Elevated temperature usage

Xi'an XYMCO Magnesium Alloy Materials Co., Ltd produces the Magnesium-Rare Earth Alloys, including Magnesium-Scandium, Magnesium-Yttrium, Magnesium-Lanthanum, Magnesium-Cerium, Magnesium-Praseodymium, Magnesium-Neodymium, Magnesium-Samarium, Magnesium-Europium, Magnesium-Gadolinium, Magnesium-Terbium, Magnesium-Dysprosium, Magnesium-Holmium, Magnesium-Erbium, Magnesium-Thulium, Magnesium-Ytterbium, and Magnesium-Lutetium. We also provide other Magnesium Master Alloys, such as Magnesium-Calcium, Magnesium-Manganese, and Magnesium-Zirconium. Please refer to the tables below for details of each product. Any RFQ please e-mail to sales.magalloys@qq.com, or WhatsApp by +86 189 66935266.


The beneficial effects of rare earth on the non-ferrous materials in the magnesium alloy are the most obvious. Appropriate content of rare earth can refine the grain size of magnesium and magnesium alloys. The first is to refine casting grain. Rare earth elements refine the mechanism is not the role of heterogeneous nucleation of magnesium alloy casting organizations. The mechanism of rare earth elements on the grain refinement of magnesium and magnesium alloy crystallization forefront of undercooling increases.

Alloying magnesium with rare-earth elements (RE) is used to develop light construction alloys for the applications at elevated and high temperatures. Generally, RE elements in Mg have relatively high solubility decreasing significantly with decreasing temperature. Therefore age hardening is possible in these alloys to improve mechanical properties.

Magnesium-Neodymium, Magnesium-Zirconium, Magnesium-Lanthanum Alloy, Mg-Ce Alloy, Magnesium-Scandium, Magnesium-Gadolinium, Magnesium-yttrium are high purity RE alloys manufactured by XYMCO. As master alloys, they can be used for grain refining, hardening, and improving alloy performance by enhancing properties such as ductility and machinability. Available Magnesium-Rare Earth alloy forms include sheets and plates, discs, rods, tubes, and other shapes. XYMCO can produce Magnesium-Rare Earth alloys in various standard ratios of Mg/RE; Customized Magnesium-Rare Earth alloys compositions are also available. Advanced chemical analysis is available for all Mg-RE alloys by best demonstrated techniques including X-ray fluorescence (XRF), glow discharge mass spectrometry (GDMS), and inert gas fusion.

Application: As the master alloy, magnesium-rare earth alloy can be used as the addictive to alloys, for the refining, hardening and machinability. Magnesium rare earth master alloys can be used for rare earth-containing cast magnesium alloys and wrought magnesium alloys. Improve the alloy's high temperature resistance, corrosion resistance and creep resistance; at the same time refine the alloy structure, improve the strength, casting properties and processing performance significantly improved.

Rare Earth Content: 5%, 10%, 15%, 20%, 25%, 30% or others on request
Forms: Ingot, Irregular Chucks, lump

Magnesium-Rare Earth Master Alloy (Mg-RE alloy)

Item Code Product Formula Typical Type
Mg-RE10 Magnesium-Scandium Mg-Sc Mg-2%Sc,Mg-5%Sc, Mg-10%Sc
Mg-RE20 Magnesium-Yttrium Mg-Y Mg-5%Y, Mg-10%Y, Mg-15%Y, Mg-20%Y, Mg-25%Y, Mg-30%Y,Mg-35%Y
Mg-RE21 Magnesium-Lanthanum Mg-La Mg-5%La, Mg-10%La, Mg-15%La, Mg-20%La, Mg-25%La, Mg-30%La
Mg-RE30 Magnesium-Cerium Mg-Ce Mg-5%Ce, Mg-10%Ce, Mg-15%Ce, Mg-20%Ce, Mg-25%Ce, Mg-30%Ce
Mg-RE35 Magnesium-Praseodymium Mg-Pr Mg-5%Pr, Mg-10%Pr, Mg-15%Pr, Mg-20%Pr, Mg-25%Pr, Mg-30%Pr
Mg-RE41 Magnesium-Neodymium Mg-Nd Mg-15%Nd,Mg-25%Nd, Mg-30%Nd,Mg-35%Nd
Mg-RE50 Magnesium-Samarium Mg-Sm Mg-5%Sm, Mg-10%Sm, Mg-15%Sm, Mg-20%Sm, Mg-25%Sm, Mg-30%Sm



Magnesium-Europium Mg-Eu Mg-5%Eu, Mg-10%Eu, Mg-15%Eu, Mg-20%Eu, Mg-25%Eu, Mg-30%Eu



Magnesium-Gadolinium Mg-Gd Mg-5%Gd, Mg-10%Gd, Mg-15%Gd, Mg-20%Gd, Mg-25%Gd, Mg-30%Gd



Magnesium-Terbium Mg-Tb Mg-5%Tb, Mg-10%Tb, Mg-15%Tb, Mg-20%Tb, Mg-25%Tb, Mg-30%Tb



Magnesium-Dysprosium Mg-Dy Mg-5%Dy, Mg-10%Dy, Mg-15%Dy, Mg-20%Dy, Mg-25%Dy, Mg-30%Dy



Magnesium-Dysprosium Mg-Dy Mg-5%Dy, Mg-10%Dy, Mg-15%Dy, Mg-20%Dy, Mg-25%Dy, Mg-30%Dy



Magnesium-Holmium Mg-Ho Mg-5%Ho, Mg-10%Ho, Mg-15%Ho, Mg-20%Ho, Mg-25%Ho, Mg-30%Ho



Magnesium-Erbium Mg-Er Mg-5%Er, Mg-10%Er, Mg-15%Er, Mg-20%Er, Mg-25%Er, Mg-30%Er



Magnesium-Thulium Mg-Tm Mg-5%Tm, Mg-10%Tm, Mg-15%Tm, Mg-20%Tm, Mg-25%Tm, Mg-30%Tm



Magnesium-Ytterbium Mg-Yb Mg-5%Yb, Mg-10%Yb, Mg-15%Yb, Mg-20%Yb, Mg-25%Yb, Mg-30%Yb



Magnesium-Lutetium Mg-Lu Mg-5%Lu, Mg-10%Lu, Mg-15%Lu, Mg-20%Lu, Mg-25%Lu, Mg-30%Lu

Magnesium Master Alloy

Application: As the master alloy, magnesium alloy can be used in the Automobile, Electronics, Aerospace and Military industry.

Item Code Product Formula Typical Type
Mg-Ca Magnesium-Calcium Mg-Ca Mg-10%Ca, Mg-20%Ca
Mg-Mn Magnesium-Manganese Mg-Mn Mg-5%Mn, Mg-10%Mn
Mg-Zr Magnesium-Zirconium Mg-Zr Mg-25%Zr, Mg-30%Zr, Mg-35%Zr
Mg-Ti Magnesium-Titanium Mg-Ti Mg-10%Ti, Mg-20%Ti
Mg-Co Magnesium-Cobalt Mg-Co Mg-5% Co, Mg-15%Co
Mg-Si Magnesium-Silicon Mg-Si Mg-10%Si, Mg-25%Si
Mg-V Magnesium-Vanadium Mg-V Mg-10%V, Mg-20%V
Mg-Fe Magnesium-Iron Mg-Fe Mg-25%Fe, Mg-35%Fe
Mg-Zn Magnesium-Zinc Mg-Zn Mg-15%Zn, Mg-25%Zn, Mg-35%Zn
Mg-Ni Magnesium-Nickel Mg-Ni Mg-10%Ni, Mg-15%Ni, Mg-25%Ni
Mg-Al-Sc Mag-Al-Scandium Mg-Al-Sc Mg-15%Al-20Sc
Mg-Cu Magnesium-Copper Mg-Cu Mg-15%Cu, Mg-25%Cu
Mg-Y-Ni Mag-Yttrium-nickel Mg-Y-Ni Mg-8%Y-15%Ni
Mg-Al-Zn Mg-Al-Zn Mg-Al-Zn Mg-10%Al-3%Zn
Mg-Li Magnesium-Lithium Mg-Li Mg-10%Li, Mg-25%Li
