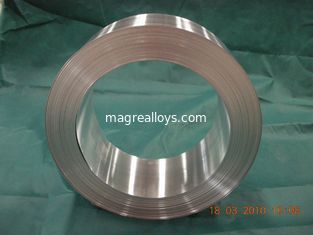

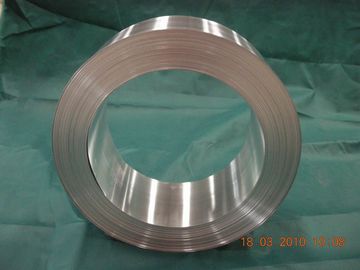

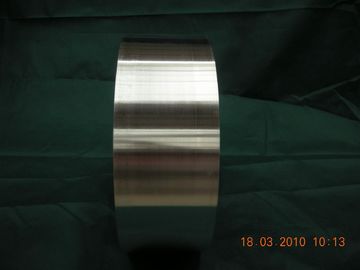

Magnesium sheet AZ31 magnesium foil AZ31B magnsium strip AZ31B magnesium ribbon AZ31B-H24 magnesium coil

China Magnesium sheet AZ31 magnesium foil AZ31B magnsium strip AZ31B magnesium ribbon AZ31B-H24 magnesium coil supplier
Magnesium sheet AZ31 magnesium foil AZ31B magnsium strip AZ31B magnesium ribbon AZ31B-H24 magnesium coil supplier Magnesium sheet AZ31 magnesium foil AZ31B magnsium strip AZ31B magnesium ribbon AZ31B-H24 magnesium coil supplier Magnesium sheet AZ31 magnesium foil AZ31B magnsium strip AZ31B magnesium ribbon AZ31B-H24 magnesium coil supplier Magnesium sheet AZ31 magnesium foil AZ31B magnsium strip AZ31B magnesium ribbon AZ31B-H24 magnesium coil supplier Magnesium sheet AZ31 magnesium foil AZ31B magnsium strip AZ31B magnesium ribbon AZ31B-H24 magnesium coil supplier Magnesium sheet AZ31 magnesium foil AZ31B magnsium strip AZ31B magnesium ribbon AZ31B-H24 magnesium coil supplier

Large Image :  Magnesium sheet AZ31 magnesium foil AZ31B magnsium strip AZ31B magnesium ribbon AZ31B-H24 magnesium coil

Product Details:

Place of Origin: Xi'an, Shaanxi, China
Brand Name: XYMCO
Certification: SGS, BV, UL
Model Number: Magnesium sheet AZ31 magnesium foil AZ31B magnsium strip AZ31B magnesium ribbon AZ31B-H24 magnesium coil

Payment & Shipping Terms:

Minimum Order Quantity: 1KG
Price: 5-50USD/KG EX-WORKS
Packaging Details: PLYWOOD CASE
Delivery Time: 7DAYS
Payment Terms: T/T, WESTERN UNION, L/C, D/P, D/A
Supply Ability: 200tonne per month
Contact Now
Detailed Product Description
SALVAGE: Scrap Retains A Consistently High Level Of Value UNIT VOLUME: Greater Amount Of Finished Magnesium Material Obtained, Pound For Pound
NONMAGNETIC: Good For Electrical And Computer Applications REPID HEAT: Ideal For A Broad Range Of Operating Temperatures, From 350 Degrees Fahrenheit To -30 Degrees Fahrenheit
NON-GALLING: Sound And Rugged Surface, Offering A Low Coefficient Of Friction And Minimum Wear STRENGTH: Excellent Strength And Stiffness Per Unit Weight
CORROSION RESISTANT: A Wide Variety Of Chemical Treatments Exists For Corrosion Protection, Alteration Of Surface Appearance, And To Provide A Base For Painting. Basic Engineering Precautions Averts Galvanic Corrosion ALKALI-RESISTANT: Makes For Easy Cleaning
WELDING: Strong Weldments Up To 95% Of Parent Metal, With Minimal Porosity STABILITY: No Stress Relief After Machining; No Warps And Is Dent Resistant
WEIGHT: Easier Handling Saves Energy And Time DAMPING: Absorbs Vibration For Longer Life, While Retaining Dimensional Stability
Application:: As The Master Alloy, Magnesium-rare Earth Alloy Can Be Used As The Addictive To Alloys, For The Refining, Hardening And Machinability. TOOLING: 4 To 5 Times Greater Tool Life
FINISH: Up To 5 Times More Machinable Than Rolled Aluminum COSTS: Machine Dry, Without Oil Or Chemicals

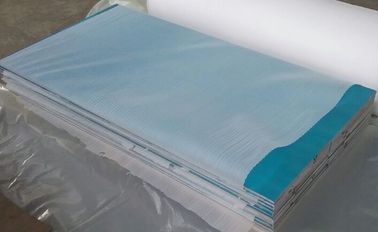

Magnesium sheet AZ31 magnesium foil AZ31B magnsium strip AZ31B magnesium ribbon AZ31B-H24 magnesium coil



Xi'an XYMCO Magnesium Alloy Materials Co., Ltd. (XYMCO) produces the standard size magnesium CNC engraving plate / sheet as follows:



1.50 x 610 x 914mm;

1.75 x 610 x 914mm;

2.00 x 610 x 914mm;

3.00 x 610 x 914mm;

4.00 x 610 x 914mm;

4.50 x 610 x 914mm;

5.00 x 610 x 914mm;

6.00 x 610 x 914mm;

7.00 x 610 x 914mm;

10.0 x 610 x 914mm.

Or

1.50 x 500 x 1000mm;

1.75 x 500 x 1000mm;

2.00 x 500 x 1000mm;

3.00 x 500 x 1000mm;

4.00 x 500 x 1000mm;

4.50 x 500 x 1000mm;

5.00 x 500 x 1000mm;

6.00 x 500 x 1000mm;

7.00 x 500 x 1000mm;

10.0 x 500 x 1000mm.



XYMCO always maintains enough quantity magnesium CNC engraving plate / sheet in stock to make sure fast delivery, competitive price and excellent quality.



Why Magnesium Plate?

Magnesium CNC engraving plate has good carving processing performance. Because of its outstanding characteristics of magnesium plate engraving of low density, high specific stiffness, good damping property, environment friendly and no pollution, Recyclable good performance, known as the twenty-first Century green metal structure material.



The magnesium CNC engraving plate and mechanical processing of parts, in national defense, aerospace, electronic communication, rail transportation, medical equipment, printing plate, magnesium board carving mold and other fields, and has wide application prospect.

Magnesium CNC engraving plate as a kind of excellent metal material processing machinery and carving, has the following characteristics:

Cutting energy consumption with magnesium CNC engraving plate into 1, then 2.3 to 1.8 brass, aluminum, iron is 3.5; the cutting inertia is small it magnesium plate, can realize high speed cutting.

Magnesium CNC engraving plate, dimensional stability, not easy to change with temperature.

Non magnetic metal magnesium, magnesium plate shielding electromagnetic, strong anti-interference ability.

Magnesium has excellent damping properties, good damping.

Engraving magnesium board high specific stiffness. Magnesium the proportion of small, light weight.

Magnesium rich reserves of resources, recycling use.

Magnesium is widely exists in the nature, the magnesium CNC engraving plate can be naturally decomposed into magnesium salt, no harm to soil and water.

Magnesium CNC engraving plate adopts the carving process of high speed cutting has the following characteristics:

The feed speed engraving cutter can be improved more than 6 times; material removal rate can be increased by 5-6 times;

Magnesium aluminum plate surface roughness is greatly increased, up to 10 μ m

Generally, carving cutting resistance magnesium plate to reduce the 1/3;

Magnesium CNC engraving plate after hot deformation is low, can limit the work hardening;

Engraving tool durability increased nearly one times;

Magnesium CNC engraving plate processing time can be significantly reduced, directly led to reduced processing cost;

Cutting resistance magnesium plate of small, good thermal conductivity, heat quickly, so the cutting speed is very fast, very few sticky knives. Engraving and cutting tool life is long, and shortens the required tool replacement in the carving process downtime.

The chip formation in magnesium board carving process, associated with the shape of parts, alloy composition, feed speed and other factors. Because magnesium CNC engraving plate cutting, the chip integrity, continuous, general situation next finishing can meet the requirements of the carving surface roughness.

In the carving and the machining process, the magnesium panel rarely occurs because the cold deformation caused by twisting or warping. But the engraving tool feed speed, tool dull, and in carving processing tool pause, possibly caused by the deformation of magnesium sheet after carving. Due to the low thermal capacity, high specific heat of magnesium, therefore, good thermal conductivity, friction occurs by engraving tool and workpiece in magnesium alloy and heat generation, can spread quickly, so magnesium CNC engraving plate carving process, generally does not produce high temperature. But in the high speed and high feed rate conditions, because the magnesium plate local overheating may occur magnesium board twist, deformation.

The magnesium CNC engraving processing parts with high dimension tolerance requirement, should fully consider the coefficient and various processing parameters, conditions of magnesium plate thermal expansion set, take appropriate measures, minimize the magnesium plate size error caused by volume expansion. Magnesium thermal expansion coefficient is slightly higher than that of aluminum.

Several groups of experimental data from magnesium CNC engraving mold, Carving plastic mold, board size is 5x275x330mm, the initial CNC engraving, carving copper, need 10 hours; 6 hours with CNC engraving magnesium board plastic mold.

The plastic drop experiment, die size is 6x130x130mm, copper mold, heating time of 30 seconds, the release time of 35 seconds; magnesium plate CNC engraving of plastic mold, heating time of 12 seconds, the release time of 15 seconds.

Burning experiment, copper mold burning, carbon deposition, and can not be used, must be polished, it again after plating; magnesium plate engraved plastic mold had burned 5 times, can still be used normally.

The service life of die, copper, used about 20000 times, carbon deposition over burning need treatment after use; magnesium CNC engraving plate mold, continuous use 100000 times, still bright as new, the frog is the magnesium CNC engraving plate mold, plastic drop, yield 100000 times.

Magnesium plate engraved plastic mod and the sole mold, has obvious advantages, magnesium plate CNC engraving speed rapidly, non stick knives, knife easily continue, fast heating, fast remolding, light weight, not afraid of burning. Mould magnesium plate burning, no-carbon formation, does not affect the use, without treatment.

CNC machined magnesium dies are the environmentally-friendly choice when it comes to foiling and embossing dies. There is no caustic acid involved when producing CNC dies, and all chip waste is recycled over and over.

In order to reduce the deformation produced magnesium CNC engraving plate carving process, can consider to be processing process is divided into two stages, in the roughing stage, cut off most removal. The magnesium alloy frame, thin wall parts, can take the damping method to reduce the deformation caused by magnesium plate vibration. The carving of the semi-finished parts of artificial aging or heat treatment, so as to reduce the components stress, deformation of magnesium CNC engraving plate reduced. The reasonable design of geometric parameters on the magnesium CNC engraving plate, such as a big rake angle, reduce the flank wear, keep the carving knife sharp, effectively reduce the cutting force, in order to reduce the deformation magnesium board carving process occurs in the tool for magnesium CNC engraving processing, magnesium according to capacity ratio low, small cutting force characteristics, the tool design, should be considered a small angle, large angle, and large walk chip space.



MAGNESIUM TOOLING PLATE produced by Xi'an XYMCO Magnesium Alloy Materials Co., Ltd. (XYMCO) is specially produced to provide a flat plate surface with moderate strength and ductility. The production process results in plate with exceptional dimensional stability in machining and remains stable over time. There is sufficient ductility for limited room temperature forming combined with weldability to allow the manufacture of a multitude of complex parts. Wrought magnesium tooling plate (Alloy AZ31B) has the following benefits and characteristics:

DAMPING Absorbs vibration for longer life, while retaining dimensional stability
TOOLING 4 to 5 times greater tool life
FINISH Up to 5 times more machinable than rolled aluminum
COSTS Machine dry, without oil or chemicals
WEIGHT Easier handling saves energy and time
FLATNESS Eliminates surface machining
STABILITY No stress relief after machining; no warps and is dent resistant
WELDING Strong weldments up to 95% of parent metal, with minimal porosity
ALKALI-RESISTANT Makes for easy cleaning
CORROSION RESISTANT A wide variety of chemical treatments exists for corrosion protection, alteration of surface appearance, and to provide a base for painting. Basic engineering precautions averts galvanic corrosion
STRENGTH Excellent strength and stiffness per unit weight
NON-GALLING Sound and rugged surface, offering a low coefficient of friction and minimum wear

REPID HEAT

DISSIPATION

Ideal for a broad range of operating temperatures, from 350 degrees Fahrenheit to -30 degrees Fahrenheit
NONMAGNETIC Good for electrical and computer applications

UNIT VOLUME

YIELD

Greater amount of finished magnesium material obtained, pound for pound
SALVAGE Scrap retains a consistently high level of value



APPLICATION

Those applications requiring a flat surface or high dimensional stability benefit from the use of magnesium tooling plate. Typical uses included jigs, fixtures, optical benches, vibration test equipment and inspection gauges. Magnesium Tooling Plate is non-magnetic and has high electrical and thermal conductivity filling many material requirements in the electronics and computer industries.



Magnesium Tooling Plate Flatness Tolerances

Max. deviation from flat as measured by a straight edge placed on plate surface.

Specified Plate Gauge Max. allowed deviation from flat
Over (mm) Thru (mm) In any 300mm In any 1500mm In any 2000mm
6.3 25 0.125mm 0.31mm 0.42mm
25 150 0.250mm
Specified Plate Gauge Typical tooling plate deviation from flat
Over (mm) Thru (mm) In any 300mm In any 1500mm In any 2000mm
6.3 25 0.077mm 0.15mm 0.19mm
25 150 0.125mm 0.21mm 0.28mm

STANDARD DIMENSIONAL TOLERANCES FOR TOOLING PLATE

GAUGE TOLERANCES WIDTH TOLERANCES LENGTH TOLERANCES
Specified Gauge Tolerance Specified Width Tolerance Specified Width Tolerance
Over Thru Over Thru Over Thru
6.3 19mm +/-0.25mm 0 250mm +4.75mm 0 250mm +4.75mm
19 32mm +/-0.43mm 250 1220mm +9.50mm 250 1220mm +9.50mm
32 50mm +/-0.64mm 1220 1825mm +12.7mm 1220 1825mm +12.7mm
50 75mm +/-1.25mm 1825 1950mm +15.9mm 1825 6000mm +15.9mm
75 83mm +/-1.65mm - - - - - -
83 90m +/-2.00mm - - - - - -
90 100mm +/-2.80mm - - - - - -
100 125mm +/-3.20mm - - - - - -
125 150mm +/-3.40mm - - - - - -
150 175mm +/-3.705mm - - - - - -



TOOLING PLATES STANDARD METRIC SIZES

6.35 x 1250 x 2500mm 20 x 1500 x 4000mm 50 x 1500 x 4000mm
6.35 x 1250 x 4000mm 25 x 1250 x 2500mm 60 x 1250 x 2500mm
10 x 1250 x 2500mm 25 x 1250 x 4000mm 60 x 1250 x 4000mm
10 x 1250 x 4000mm 25 x 1500 x 4000mm 60 x 1500 x 4000mm
12.7 x 1250 x 2500mm 30 x 1250 x 2500mm 75 x 1250 x 2500mm
12.7 x 1250 x 4000mm 30 x 1250 x 4000mm 75 x 1250 x 4000mm
12.7 x 1500 x 4000mm 30 x 1500 x 4000mm 75 x 1500 x 4000mm
15 x 1250 x 2500mm 40 x 1250 x 2500mm 100 x 1250 x 2000mm
15 x 1250 x 4000mm 40 x 1250 x 4000mm 125 x 1250 x 2000mm
15 x 1500 x 4000mm 40 x 1500 x 4000mm 150 x 1250 x 1500mm
20 x 1250 x 2500mm 50 x 1250 x 2500mm 195x1500x1500mm
20 x 1250 x 4000mm 50 x 1250 x 4000mm 350x1100x3000mm

Other sizes are available subject to enquiry, up to a maximum per plate weight of 1100kg.

Maximum gauge: 350mm; Maximum width 2000mm; Maximum length: 5000mm

 Magnesium sheet AZ31 magnesium foil AZ31B magnsium strip AZ31B magnesium ribbon AZ31B-H24 magnesium coil
Our Services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality


FAQ:
1. Q: Are you a factory or trading company?
A: We are direct manufacturer located in Xi'an, Shaanxi province, and have our equipment!
2. Q: Are your products customized?
A: Yes,the products in the website are only the common type or the previous types, we can supply the new products according to your requirements or drawings.
3. I do not know how to use your product ?
Do not worry ! We can supply technical guidance together with products.
4. Q: How can I get some samples?
A: Several samples are freely offered for buidling the business long-term relationships and letting our customers believing the quality of our products.
