Forged AZ80 Magnesium billet, AZ80A forged block, AZ80A-T5 forged bar stock

China Forged AZ80 Magnesium billet, AZ80A forged block, AZ80A-T5 forged bar stock supplier
Forged AZ80 Magnesium billet, AZ80A forged block, AZ80A-T5 forged bar stock supplier Forged AZ80 Magnesium billet, AZ80A forged block, AZ80A-T5 forged bar stock supplier Forged AZ80 Magnesium billet, AZ80A forged block, AZ80A-T5 forged bar stock supplier Forged AZ80 Magnesium billet, AZ80A forged block, AZ80A-T5 forged bar stock supplier Forged AZ80 Magnesium billet, AZ80A forged block, AZ80A-T5 forged bar stock supplier Forged AZ80 Magnesium billet, AZ80A forged block, AZ80A-T5 forged bar stock supplier

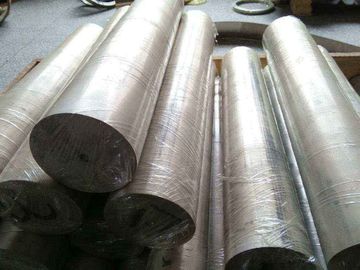

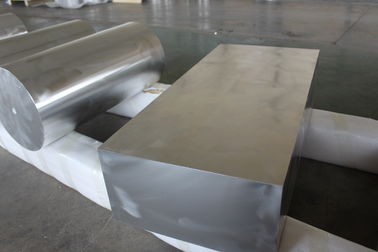

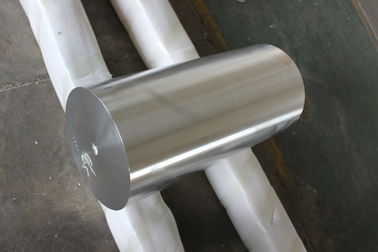

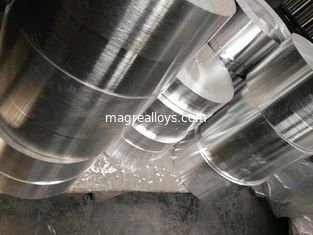

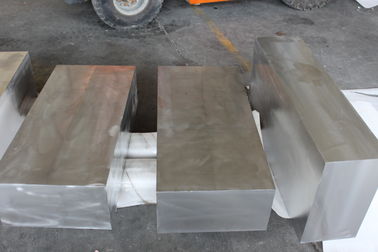

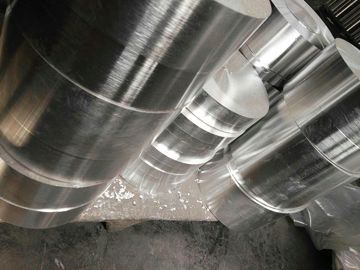

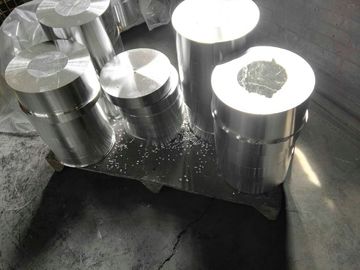

Large Image :  Forged AZ80 Magnesium billet, AZ80A forged block, AZ80A-T5 forged bar stock

Product Details:

Place of Origin: CHINA
Brand Name: XYMCO METAL
Certification: SGS, BV
Model Number: AZ31B, AZ61A, AZ80A, ZK60A, AZ91D, AM50B, AM60B

Payment & Shipping Terms:

Minimum Order Quantity: 50kg per order
Price: 30USD
Packaging Details: Carton case, Plywood box
Delivery Time: 7-20days
Payment Terms: T/T, L/C, D/P
Supply Ability: 50tonne per month
Detailed Product Description
SALVAGE: Scrap Retains A Consistently High Level Of Value UNIT VOLUME: Greater Amount Of Finished Magnesium Material Obtained, Pound For Pound
NONMAGNETIC: Good For Electrical And Computer Applications REPID HEAT: Ideal For A Broad Range Of Operating Temperatures, From 350 Degrees Fahrenheit To -30 Degrees Fahrenheit
NON-GALLING: Sound And Rugged Surface, Offering A Low Coefficient Of Friction And Minimum Wear STRENGTH: Excellent Strength And Stiffness Per Unit Weight
CORROSION RESISTANT: A Wide Variety Of Chemical Treatments Exists For Corrosion Protection, Alteration Of Surface Appearance, And To Provide A Base For Painting. Basic Engineering Precautions Averts Galvanic Corrosion ALKALI-RESISTANT: Makes For Easy Cleaning
WELDING: Strong Weldments Up To 95% Of Parent Metal, With Minimal Porosity STABILITY: No Stress Relief After Machining; No Warps And Is Dent Resistant
WEIGHT: Easier Handling Saves Energy And Time DAMPING: Absorbs Vibration For Longer Life, While Retaining Dimensional Stability
Application:: As The Master Alloy, Magnesium-rare Earth Alloy Can Be Used As The Addictive To Alloys, For The Refining, Hardening And Machinability. TOOLING: 4 To 5 Times Greater Tool Life
FINISH: Up To 5 Times More Machinable Than Rolled Aluminum COSTS: Machine Dry, Without Oil Or Chemicals

Forged AZ80 Magnesium billet, AZ80A forged block, AZ80A-T5 forged bar stock

Xi'an XYMCO Magnesium Alloy Materials Co., Ltd. (XYMCO) has started to produce the forged magnesium alloy plate, forged magnesium alloy slab, forged magnesium alloy cube, forged magnesium alloy disc, forged magnesium alloy block and forged magnesium alloy billet from 2004.

ZK60A

ZK60A is a wrought magnesium base alloy containing zinc and zirconium. Increased strength is obtained by artificial aging from the as-fabricated form. ZK60A-T5 has the best combination of strength and ductility at room-temperature of the wrought magnesium alloys.



APPLICATIONS

Forgings and extrusions in ZK60A find application in high strength parts for use primarily where the service temperature is below 150°C. ZK60A forgings can be used where pressure tightness or machinability are required. That parts are dimensionally stable during and after machining is also an important design consideration.

Forgings and extrusions in ZK60A find application in high strength parts for satellites, helicopter gearboxes and rotor hubs, bicycle frames, roadwheels, missle frames and interstage fairings, brake housings and landing gear struts.



SPECIFICATIONS

ASTM B91

ASTM B107/B107M-13



CHEMICAL COMPOSITION

Zinc 4.8-6.2%

Zirconium 0.45% min

Magnesium Balance



Dimension Scope

Forgings: Max. length 1000mm, max. width 500mm, max thickness 330mm.

Extrusions: Diameter 6mm - 180mm for round bar; thickness and width 10-220mm for square/rectangular section. Length: 100mm - 6000mm

Thickness and width are inter-dependant.



HEAT TREATMENT

As-fabricated (F) forgings can be converted to the precipitation treated temper (T5) by heating to 150°C for 24 hours, followed by air cooling.



PHYSICAL PROPERTIES

Specific Gravity 1.83

Coefficient of Thermal Expansion 27.1x10 -6 K -1

Thermal Conductivity 121 Wm -1 K -1

Specific Heat 1100 Jkg -1 K -1

Electrical Resistivity 57 nΩm

Modulus of Elasticity 45GPa

Poissons Ratio 0.35

Melting Range 520-635°C



TYPICAL HARDNESS

ZK60A-T6 85 Rockwell E

ZK60A-T5 77 Rockwell E



WELDABILITY

ZK60A is not considered to be weldable by conventional techniques due to hot-shortness cracking. However, resistance welding response is excellent. Friction stir welding can be used to join ZK60A to itself and other magnesium alloys.



MACHINING

ZK60A, like all magnesium alloy forgings, machines faster than any other metal. Providing the geometry of the part allows, the limiting factor is the power and speed of the machine rather than the quality of the tool material. The power required per cubic centimeter of metal removed varies from 9 to 14 watts per minute depending on the operation.



SURFACE TREATMENT

All the normal chromating, anodizing, plating, and finishing treatments are readily applicable.

Magnesium alloys have traditionally been specified by designers because of their favorable strength to weight ratios. Magnesium is approximately two thirds the density of aluminium and a quarter that of steel. Some of the more recently developed magnesium alloys have also improved resistance to corrosion and better all round mechanical properties, especially at elevated temperature.

The growing numbers of available magnesium alloys are divided into two groups: casting alloys and wrought alloys. Wrought product forms (described below) include both extruded sections and rolled sheet/plate along with tubes and forgings. Various heat treatments are used to attain maximum strength and machining of most magnesium alloys is excellent.

The specifications and alloy grades which XYMCO can be complied with are as following Table:

DESCRIPTION

ASTM Alloy

Designation & Temper

ASTM FEDERAL AMS
AZ31B Sheet - soft AZ31B-O B90 QQ-M-44B 4375
Sheet - half hard AZ31B-H24 B90 QQ-M-44B 4377
Plate - soft AZ31B-O B90 QQ-M-44B 4375
Plate - half hard AZ31B-H24 B90 QQ-M-44B 4377
Plate- three quarters hard AZ31B-H26 B90 QQ-M-44B 4376
Plate - Extra flat AZ31B-O   -- 4382
Extruded bars & sections AZ31B-F B107 QQ-M-31B -
AZ61A Extruded bas & sections & forging stock AZ61A-F B107 QQ-M-31B 4350
Extruded tube AZ61A-F B107 WW-T-825B -
Forgings AZ61A-F B91 QQ-M-40B -
AZ80A

Extruded bars &

sections

precipitation treated AZ80A-T5 B107 QQ-M-31B -
As-extruded AZ80A-F B91 QQ-M-31B -
Forgings precipitation treated AZ80A-T5 B91 QQ-M-40B 4360
As-extruded AZ80A-F B91 QQ-M-40B
ZK60A

Extruded bars &

sections

precipitation treated ZK60A-T5 B107 QQ-M-31B 4352
  As-extruded ZK60A-F B107 QQ-M-31B -
Forgings precipitation treated ZK60A-T5 B91 QQ-M-40B 4362
  As-extruded ZK60A-F B91 QQ-M-40B -
Magnesium Alloy Castings AM50, AM60, A281, AZ91, EQ21, EZ33, EV31, WE43, WE54, ZE41

Forged AZ80 Magnesium billet, AZ80A forged block, AZ80A-T5 forged bar stock
Our Services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality


FAQ:
1. Q: Are you a factory or trading company?
A: We are direct manufacturer located in Xi'an, Shaanxi province, and have our equipment!
2. Q: Are your products customized?
A: Yes,the products in the website are only the common type or the previous types, we can supply the new products according to your requirements or drawings.
3. I do not know how to use your product ?
Do not worry ! We can supply technical guidance together with products.
4. Q: How can I get some samples?
A: Several samples are freely offered for buidling the business long-term relationships and letting our customers believing the quality of our products.
