ZK60 Magnesium Pipe ZK60A-F extruded Magnesium Tube ZK60A-T5 Magnesium Alloy Pipe ZK60

China ZK60 Magnesium Pipe ZK60A-F extruded Magnesium Tube ZK60A-T5 Magnesium Alloy Pipe ZK60 supplier
ZK60 Magnesium Pipe ZK60A-F extruded Magnesium Tube ZK60A-T5 Magnesium Alloy Pipe ZK60 supplier ZK60 Magnesium Pipe ZK60A-F extruded Magnesium Tube ZK60A-T5 Magnesium Alloy Pipe ZK60 supplier ZK60 Magnesium Pipe ZK60A-F extruded Magnesium Tube ZK60A-T5 Magnesium Alloy Pipe ZK60 supplier ZK60 Magnesium Pipe ZK60A-F extruded Magnesium Tube ZK60A-T5 Magnesium Alloy Pipe ZK60 supplier ZK60 Magnesium Pipe ZK60A-F extruded Magnesium Tube ZK60A-T5 Magnesium Alloy Pipe ZK60 supplier ZK60 Magnesium Pipe ZK60A-F extruded Magnesium Tube ZK60A-T5 Magnesium Alloy Pipe ZK60 supplier

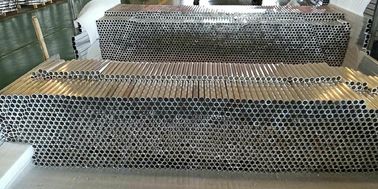

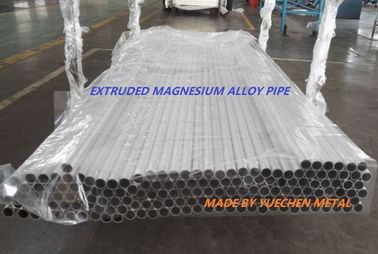

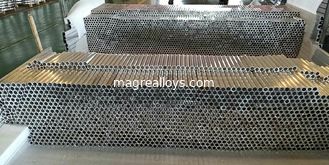

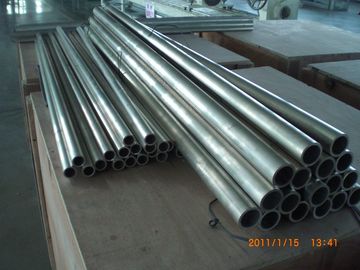

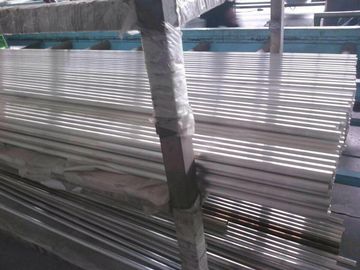

Large Image :  ZK60 Magnesium Pipe ZK60A-F extruded Magnesium Tube ZK60A-T5 Magnesium Alloy Pipe ZK60

Product Details:

Place of Origin: CHINA
Brand Name: XYMCO METAL
Certification: SGS, BV
Model Number: AZ31B, AZ61A, AZ80A, ZK60A, AZ91D, AM50B, AM60B

Payment & Shipping Terms:

Minimum Order Quantity: 50kg per order
Price: 30USD
Packaging Details: Carton case, Plywood box
Delivery Time: 7-20days
Payment Terms: T/T, L/C, D/P
Supply Ability: 50tonne per month
Detailed Product Description
SALVAGE: Scrap Retains A Consistently High Level Of Value UNIT VOLUME: Greater Amount Of Finished Magnesium Material Obtained, Pound For Pound
NONMAGNETIC: Good For Electrical And Computer Applications REPID HEAT: Ideal For A Broad Range Of Operating Temperatures, From 350 Degrees Fahrenheit To -30 Degrees Fahrenheit
NON-GALLING: Sound And Rugged Surface, Offering A Low Coefficient Of Friction And Minimum Wear STRENGTH: Excellent Strength And Stiffness Per Unit Weight
CORROSION RESISTANT: A Wide Variety Of Chemical Treatments Exists For Corrosion Protection, Alteration Of Surface Appearance, And To Provide A Base For Painting. Basic Engineering Precautions Averts Galvanic Corrosion ALKALI-RESISTANT: Makes For Easy Cleaning
WELDING: Strong Weldments Up To 95% Of Parent Metal, With Minimal Porosity STABILITY: No Stress Relief After Machining; No Warps And Is Dent Resistant
WEIGHT: Easier Handling Saves Energy And Time DAMPING: Absorbs Vibration For Longer Life, While Retaining Dimensional Stability
Application:: As The Master Alloy, Magnesium-rare Earth Alloy Can Be Used As The Addictive To Alloys, For The Refining, Hardening And Machinability. TOOLING: 4 To 5 Times Greater Tool Life
FINISH: Up To 5 Times More Machinable Than Rolled Aluminum COSTS: Machine Dry, Without Oil Or Chemicals

ZK60 Magnesium Pipe ZK60A-F extruded Magnesium Tube ZK60A-T5 Magnesium Alloy Pipe ZK60



Xi'an XYMCO Magnesium Alloy Materials Co., Ltd. (XYMCO) has manufactured magnesium alloy profile from 1995. We have production capacity with 1250 tonne press, 2500 tonne press and 3600 tonne press in house, our subcontract company has the 8000 tonne press and 10000 tonne press so that we can supply our customers big section extrusions.



Our Max. extrusion capacity is as follows:

Round tube: Max. OD600mmx thickness 125mm

Square tube: 430 x 430mm

Flat bar: 920 x 160mm
U-Shape: 800 x 300mm

Rectangular: 700 x 200mm



Available extrusion alloys:

AZ31B, AZ61A, AZ80A, M1A, ZK60A, Pure Magnesium and Custom alloys

Heat treatment is available as per customer’s application.



Specification:

ASTM B107/B107M-13

GB standard



Existing Extrusion Mould of tube:

OD

Wall

thickness (mm)

22 1.5
22 2
24.5 2
25 1.5
25 2
25 2.5
25 3
25 3.5
26 1.2
26 1.6
27 3.5
28 3
28.5 3
28.6 2.5
29 5
38 2.65
38.1 6
40 1.25
44 5.5
51 8
64 5.6
69 6
70 4
75 6.5
104 4.5
50 5
30 3
42 5
45 13.5
34.9 1.25
20 1.5
36 2.5
38 2.5
38.1 6
38.1 1.8
40 3.25
40 4
42 4
42 6
44 1.25
44 1.8
44.5 2
45 2
50 2
50.8 1.48
50.8 1.65
51 2
9 1
10.4 1
10.4 2.4
13.2 1
13.5 1.25
16 1
19 1.2
22 1.2
22 2
145 7
65 15
170 20
132 14.5



The process for extruding magnesium wrought material is almost the same as the process for extruding aluminium materials. Most common is direct extrusion without a lubricant. Cylindrical ingots are heated to 300-400 degrees Celsius (depending on the used alloy) and pressed through dies with manifold cross- sections. This procedure ensures a clean metallic surface and non-porous microstructures that are really important for high-tech materials and special requirements.


The maximum extrusion speed depends on the alloy that’s been used and defines the price. The alloy AZ 31 is easier for extrusion, and the most difficult alloys are for example AZ 80 and ZK 60 The extrusion speed is sometimes more than ten times slower for these alloys.


The special shapes and cross-sections of the magnesium extrusions can be designed with considerable freedom. Extruded shapes are separated into solid and hollow profiles according to the complexity factors and the cross-sections. Full rods, flat bars and shapes without embedded planes belong to the first type, while hollow profiles include one or more completely enclosed cavity or bay region.
The minimum wall thickness is determined by the alloy and form of the profile. For small or medium size profiles in alloy AZ31 the minimum wall thickness is about 1 mm. Wall thickness in multiple walls with bosses, flanges, ribs, slits and indentations can be incorporated into a new designed product to maximize the mechanical properties.


With some of the alloys it’s possible to extrude magnesium on the standard dies that are normally used for aluminium extrusions with a small correction to the die. Because of this there is a wide range of standard profiles (for example flat/angle/rectangular –square and round tubes/ U-shape/H-shape etcetera) that can be extruded without big investments in new dies. The second added value for the customer is that for new designed profiles, he only needs to invest in one single die for extruding profiles in aluminium and magnesium.

After extrusion there are several steps necessary before the extruded profile can be used for constructional components with the required strength for example stretching and special heat treatment.

ZK60 Magnesium Pipe ZK60A-F extruded Magnesium Tube ZK60A-T5 Magnesium Alloy Pipe ZK60

ZK60 Magnesium Pipe ZK60A-F extruded Magnesium Tube ZK60A-T5 Magnesium Alloy Pipe ZK60

Application of Magnesium extrusions:



The special characteristics of magnesium such as its light weight and damping capacity make it a material that is readily used in several different applications.


Automotive

Engine blocks Steering column parts Seat components
Bed plates Brake and pedal brackets Roof panels
Transmission houses Airbag retainers Fuel tank covers
Transfer cases Radio frames + heatsinks Engine hoods
Head covers Radio covers Rear deck lids
Oil pans Mirror brackets Full magnesium doors
Knee bolsters Door handles Wheels
Steering wheels Front ends Radiator supports

Sport and Leisure
Luggage frames Suit cases Tennis rackets
Bicycle frames Camping equipment Snowshoes
Mountain bike frames Eyewear frames Bull floats

Common applications
Cellular phones Multi-media housings Camcorders
Antenna housing Camera Housings Electric shavers
Loudspeaker frames Projector frames Printers
Laptop Housings Batteries Headphones
Train Seats Aviation components Turbine engines
Truss constructions Cargo floors Powertools
Chain saws Concrete trowels Wall saws
Ladders Scaffoldings Shelves

Our Services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality


FAQ:
1. Q: Are you a factory or trading company?
A: We are direct manufacturer located in Xi'an, Shaanxi province, and have our equipment!
2. Q: Are your products customized?
A: Yes,the products in the website are only the common type or the previous types, we can supply the new products according to your requirements or drawings.
3. I do not know how to use your product ?
Do not worry ! We can supply technical guidance together with products.
4. Q: How can I get some samples?
A: Several samples are freely offered for buidling the business long-term relationships and letting our customers believing the quality of our products.
