Magnesium tooling plate ZK60A magnesium plate ZK60A-T5 magnesium plate ZK60 plate

China Magnesium tooling plate ZK60A magnesium plate ZK60A-T5 magnesium plate ZK60 plate supplier
Magnesium tooling plate ZK60A magnesium plate ZK60A-T5 magnesium plate ZK60 plate supplier Magnesium tooling plate ZK60A magnesium plate ZK60A-T5 magnesium plate ZK60 plate supplier Magnesium tooling plate ZK60A magnesium plate ZK60A-T5 magnesium plate ZK60 plate supplier Magnesium tooling plate ZK60A magnesium plate ZK60A-T5 magnesium plate ZK60 plate supplier Magnesium tooling plate ZK60A magnesium plate ZK60A-T5 magnesium plate ZK60 plate supplier Magnesium tooling plate ZK60A magnesium plate ZK60A-T5 magnesium plate ZK60 plate supplier

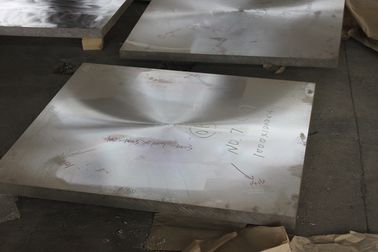

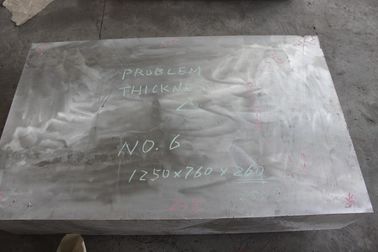

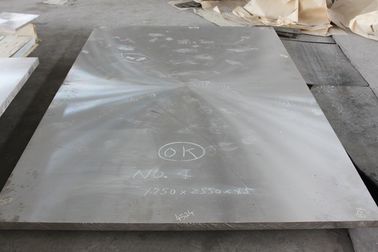

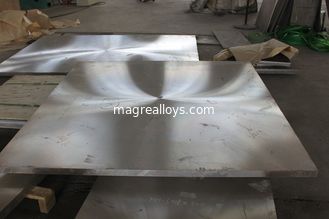

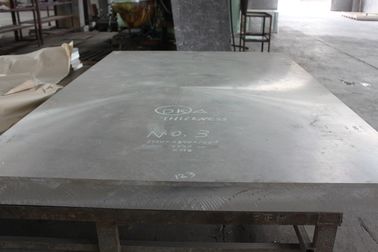

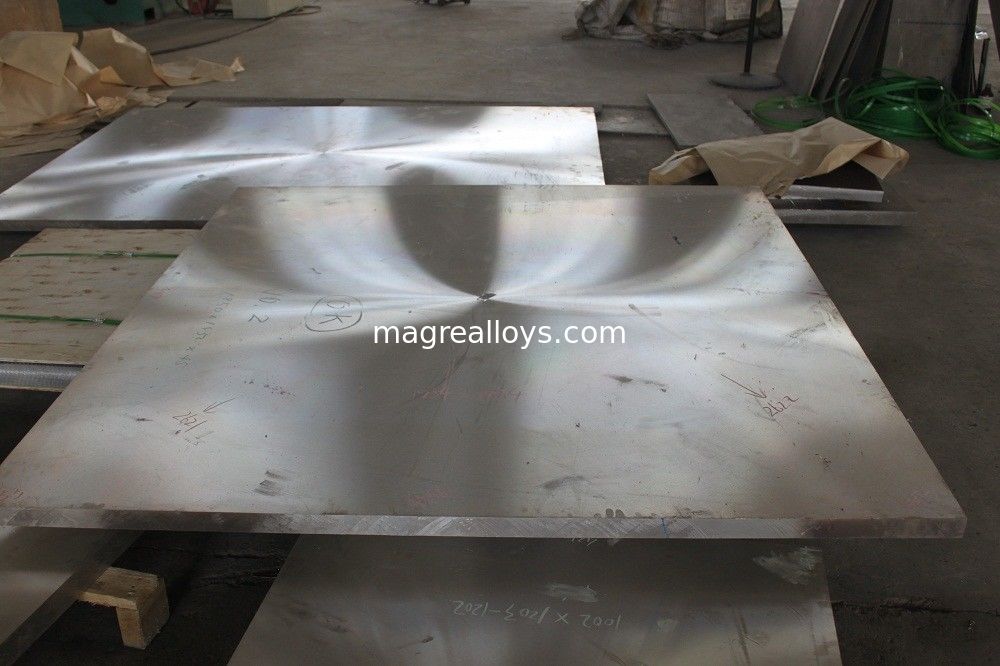

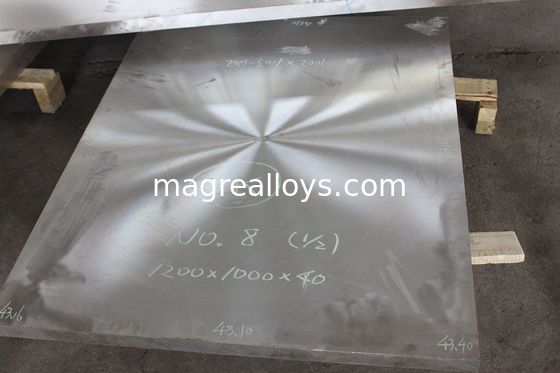

Large Image :  Magnesium tooling plate ZK60A magnesium plate ZK60A-T5 magnesium plate ZK60 plate

Product Details:

Place of Origin: CHINA
Brand Name: XYMCO METAL
Certification: SGS, BV
Model Number: AZ31B, AZ61A, AZ80A, ZK60A, AZ91D, AM50B, AM60B

Payment & Shipping Terms:

Minimum Order Quantity: 50kg per order
Price: 30USD
Packaging Details: Carton case, Plywood box
Delivery Time: 7-20days
Payment Terms: T/T, L/C, D/P
Supply Ability: 50tonne per month
Detailed Product Description
SALVAGE: Scrap Retains A Consistently High Level Of Value UNIT VOLUME: Greater Amount Of Finished Magnesium Material Obtained, Pound For Pound
NONMAGNETIC: Good For Electrical And Computer Applications REPID HEAT: Ideal For A Broad Range Of Operating Temperatures, From 350 Degrees Fahrenheit To -30 Degrees Fahrenheit
NON-GALLING: Sound And Rugged Surface, Offering A Low Coefficient Of Friction And Minimum Wear STRENGTH: Excellent Strength And Stiffness Per Unit Weight
CORROSION RESISTANT: A Wide Variety Of Chemical Treatments Exists For Corrosion Protection, Alteration Of Surface Appearance, And To Provide A Base For Painting. Basic Engineering Precautions Averts Galvanic Corrosion ALKALI-RESISTANT: Makes For Easy Cleaning
WELDING: Strong Weldments Up To 95% Of Parent Metal, With Minimal Porosity STABILITY: No Stress Relief After Machining; No Warps And Is Dent Resistant
WEIGHT: Easier Handling Saves Energy And Time DAMPING: Absorbs Vibration For Longer Life, While Retaining Dimensional Stability
Application:: As The Master Alloy, Magnesium-rare Earth Alloy Can Be Used As The Addictive To Alloys, For The Refining, Hardening And Machinability. TOOLING: 4 To 5 Times Greater Tool Life
FINISH: Up To 5 Times More Machinable Than Rolled Aluminum COSTS: Machine Dry, Without Oil Or Chemicals

Magnesium tooling plate ZK60A magnesium plate ZK60A-T5 magnesium plate ZK60 plate



MAGNESIUM TOOLING PLATE produced by Xi'an XYMCO Magnesium Alloy Materials Co., Ltd. (XYMCO) is specially produced to provide a flat plate surface with moderate strength and ductility. The production process results in plate with exceptional dimensional stability in machining and remains stable over time. There is sufficient ductility for limited room temperature forming combined with weldability to allow the manufacture of a multitude of complex parts. Wrought magnesium tooling plate (Alloy AZ31B) has the following benefits and characteristics:

DAMPING Absorbs vibration for longer life, while retaining dimensional stability
TOOLING 4 to 5 times greater tool life
FINISH Up to 5 times more machinable than rolled aluminum
COSTS Machine dry, without oil or chemicals
WEIGHT Easier handling saves energy and time
FLATNESS Eliminates surface machining
STABILITY No stress relief after machining; no warps and is dent resistant
WELDING Strong weldments up to 95% of parent metal, with minimal porosity
ALKALI-RESISTANT Makes for easy cleaning
CORROSION RESISTANT A wide variety of chemical treatments exists for corrosion protection, alteration of surface appearance, and to provide a base for painting. Basic engineering precautions averts galvanic corrosion
STRENGTH Excellent strength and stiffness per unit weight
NON-GALLING Sound and rugged surface, offering a low coefficient of friction and minimum wear

REPID HEAT

DISSIPATION

Ideal for a broad range of operating temperatures, from 350 degrees Fahrenheit to -30 degrees Fahrenheit
NONMAGNETIC Good for electrical and computer applications

UNIT VOLUME

YIELD

Greater amount of finished magnesium material obtained, pound for pound
SALVAGE Scrap retains a consistently high level of value



APPLICATION

Those applications requiring a flat surface or high dimensional stability benefit from the use of magnesium tooling plate. Typical uses included jigs, fixtures, optical benches, vibration test equipment and inspection gauges. Magnesium Tooling Plate is non-magnetic and has high electrical and thermal conductivity filling many material requirements in the electronics and computer industries.



Magnesium Tooling Plate Flatness Tolerances

Max. deviation from flat as measured by a straight edge placed on plate surface.

Specified Plate Gauge Max. allowed deviation from flat
Over (mm) Thru (mm) In any 300mm In any 1500mm In any 2000mm
6.3 25 0.125mm 0.31mm 0.42mm
25 150 0.250mm
Specified Plate Gauge Typical tooling plate deviation from flat
Over (mm) Thru (mm) In any 300mm In any 1500mm In any 2000mm
6.3 25 0.077mm 0.15mm 0.19mm
25 150 0.125mm 0.21mm 0.28mm

STANDARD DIMENSIONAL TOLERANCES FOR TOOLING PLATE

GAUGE TOLERANCES WIDTH TOLERANCES LENGTH TOLERANCES
Specified Gauge Tolerance Specified Width Tolerance Specified Width Tolerance
Over Thru Over Thru Over Thru
6.3 19mm +/-0.25mm 0 250mm +4.75mm 0 250mm +4.75mm
19 32mm +/-0.43mm 250 1220mm +9.50mm 250 1220mm +9.50mm
32 50mm +/-0.64mm 1220 1825mm +12.7mm 1220 1825mm +12.7mm
50 75mm +/-1.25mm 1825 1950mm +15.9mm 1825 6000mm +15.9mm
75 83mm +/-1.65mm - - - - - -
83 90m +/-2.00mm - - - - - -
90 100mm +/-2.80mm - - - - - -
100 125mm +/-3.20mm - - - - - -
125 150mm +/-3.40mm - - - - - -
150 175mm +/-3.705mm - - - - - -



TOOLING PLATES STANDARD METRIC SIZES

6.35 x 1250 x 2500mm 20 x 1500 x 4000mm 50 x 1500 x 4000mm
6.35 x 1250 x 4000mm 25 x 1250 x 2500mm 60 x 1250 x 2500mm
10 x 1250 x 2500mm 25 x 1250 x 4000mm 60 x 1250 x 4000mm
10 x 1250 x 4000mm 25 x 1500 x 4000mm 60 x 1500 x 4000mm
12.7 x 1250 x 2500mm 30 x 1250 x 2500mm 75 x 1250 x 2500mm
12.7 x 1250 x 4000mm 30 x 1250 x 4000mm 75 x 1250 x 4000mm
12.7 x 1500 x 4000mm 30 x 1500 x 4000mm 75 x 1500 x 4000mm
15 x 1250 x 2500mm 40 x 1250 x 2500mm 100 x 1250 x 2000mm
15 x 1250 x 4000mm 40 x 1250 x 4000mm 125 x 1250 x 2000mm
15 x 1500 x 4000mm 40 x 1500 x 4000mm 150 x 1250 x 1500mm
20 x 1250 x 2500mm 50 x 1250 x 2500mm 195x1500x1500mm
20 x 1250 x 4000mm 50 x 1250 x 4000mm 350x1100x3000mm

Other sizes are available subject to enquiry, up to a maximum per plate weight of 1100kg.

Maximum gauge: 350mm; Maximum width 2000mm; Maximum length: 5000mm

 Magnesium tooling plate ZK60A magnesium plate ZK60A-T5 magnesium plate ZK60 plate
